| ltems | Standard | |
| Operating temperature range | -25℃ to +75℃ | |
|
Electrical performance |
Rating | 30mA.,30V DC |
| Insulation resistance | ≥100MΩ | |
| Dielectric strength | 250V AC | |
| Contact resistance | ≤0.05Ω | |
| Durability | Lifetime | 80,000 Cycles |
| Operating force | J:160gf C:250gf | |

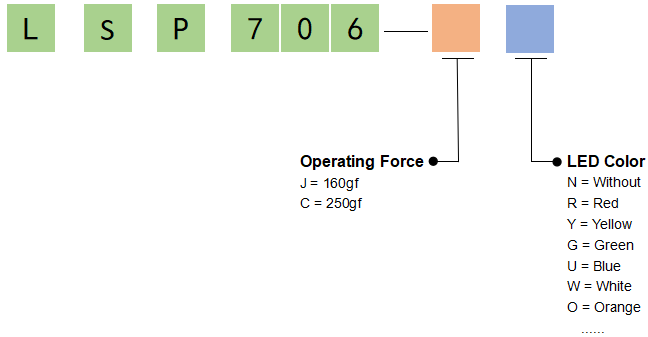

HOW TO ORDER

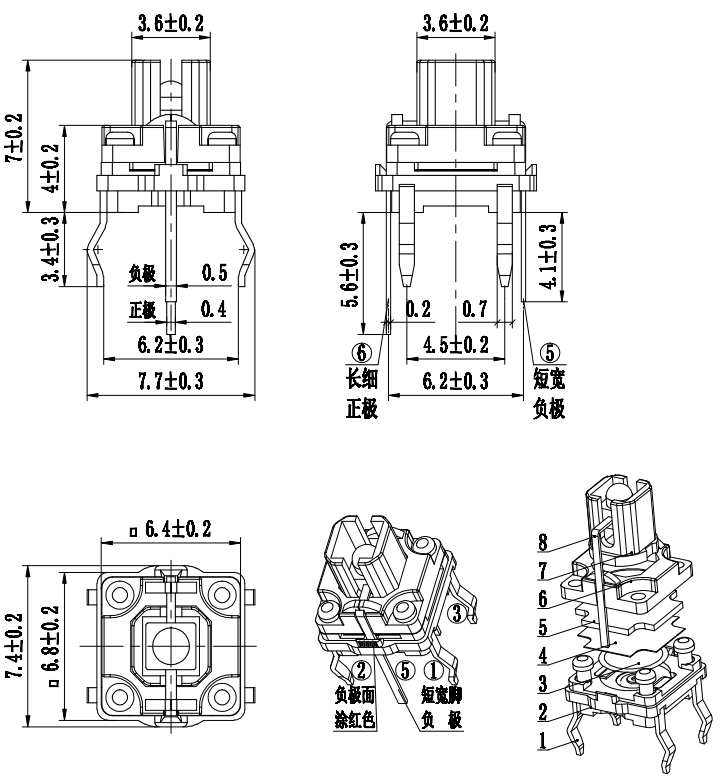

| Proudcts | Dimensions | Circuit Diagram |

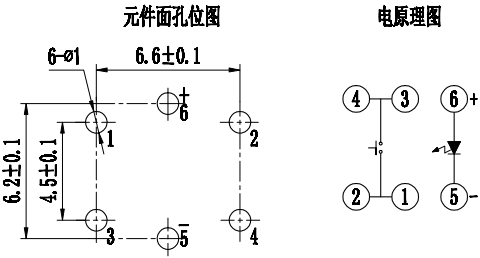

| Pad Layout | ||
 |
 |
 |
